PETOL Flange Lifter Tools
PETOL Flange Lifting Tools are the safest and most
efficient way to lift or install blind flanges or
weldneck flanges. When lifting weld neck flanges
and installing and removing blind flanges, nothing
works better and safer than SMP Flange Lifters.
Each and every tool is load tested and mag particle
inspected before delivery, assuring you the safest
possible tool. You should never rely on uninspected
welded lifting eyes. The spacers and arms can be
swapped to fit the exact flange thickness you need.

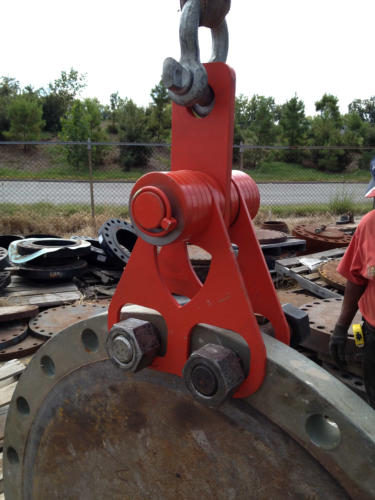

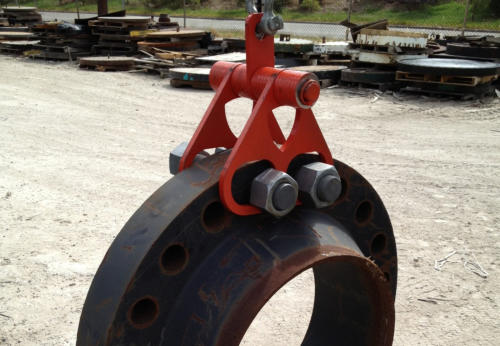

SMP Flange Lifting Tools pick up and lower blind
and weldneck flanges by the bolts. The Flange
Lifting Tools from SMP are the safest and most
reliable way to move blind or weldneck flanges
around in your plant.
SMP Flange Lifting Tools are available in several different model sizes:
SMP – FLA 1000: For lifting weld neck and blind flanges. Adjustable plates fit flanges up to 6-1/8″ thick.
The FLA 1000 is rated up to 1000 lbs.
SMP – FLA 5000: For lifting weld neck and blind flanges. Adjustable plates fit flanges up to 11-1/8″
thick. The FLA 5000 is rated up to 5000 lbs.

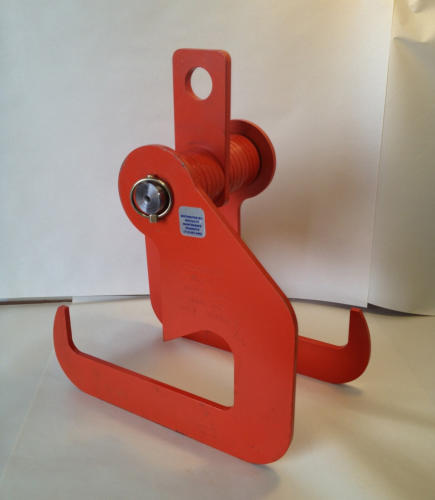

SMP – FLA 112: On this model, the arms swing to quickly, safely and easily install or remove blind
flanges. Adjustable plates fit flanges up to 4-1/2″ thick. The FLA 112 is rated up to 1000 lbs. and can
be used for lifting weld neck flanges and installing and removing blind flanges.
SMP – FLA 212: As with the FLA 112, the arms swing to quickly, safely and easily install or remove blind
flanges. The adjustable plates fit flanges up to 7-5/8″ thick, and the FLA 212 is rated up to 2000 lbs.

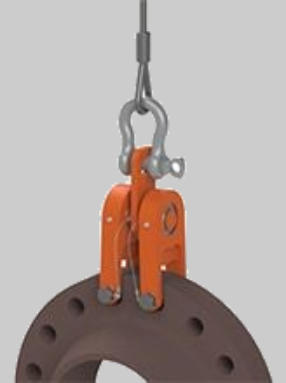

The newest model in the SMP Tools Flange Lifters lineup is the PETOL Flange Lifting
shackle. This tool also allows you to safely and easily lift and install blind or weldneck
flanges. However, unlike our other flange lifters, the flange lifting shackle operates with
positive attachment to the flange. By engaging the flange with a bolt that goes through
both sides of the shackle you prevent any potential possibilities for the shackle to slip
off. The PETOL Flange Lifting shackle comes in 3 different sizes FLS3, FLS6 and FLS11,
with load ratings for 2,000 lbs., 5,000 lbs., and 14,000 lbs. respectively.
Your Partner in Safety
