SIDE WINDER
The SMP Side Winder is the only flange spreader designed specifically to spread lap
joint flanges, slip on flanges and all other styles of flat faced flanges. The SMP Side
Winder utilizes a pair of chain clamps and a tube attachment and drive screw

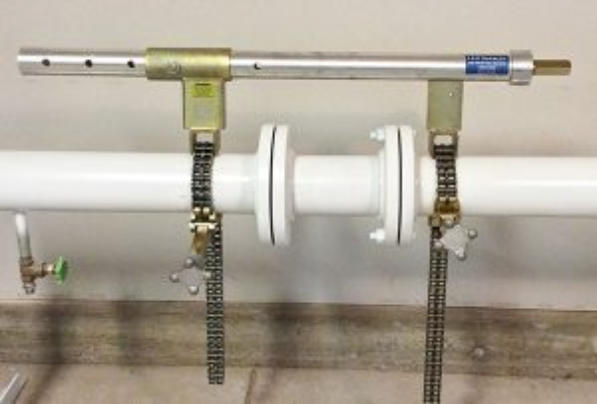

assembly to effectively separate pipe flanges. The Side Winder attaches to the pipe
on either side of the flanges with chain clamps and is operated by turning the main
drive screw inside the pipe spreader tube. The SMP Side Winder creates up to 5,000
pounds of spread force and fits all flange styles with pipe diameters 2” through 18”.
The SMP Side Winder comes in 2 different operating spans 5” through 30” and 5”
through 42” each with 2 size models.
Side Winder Pipe Spreaders 30”
Operating Span – 5” to 30”
Model
Pipe Size
SMP30PS-0208
2” thru 8”
SMP30PS-1018
10” thru 18”
Side Winder Pipe Spreaders 42”
Operating Span – 5” to 42”
Model
Pipe Size
SMP42PS-0208
2” thru 8”
SMP42PS-1018
10” thru 18”
